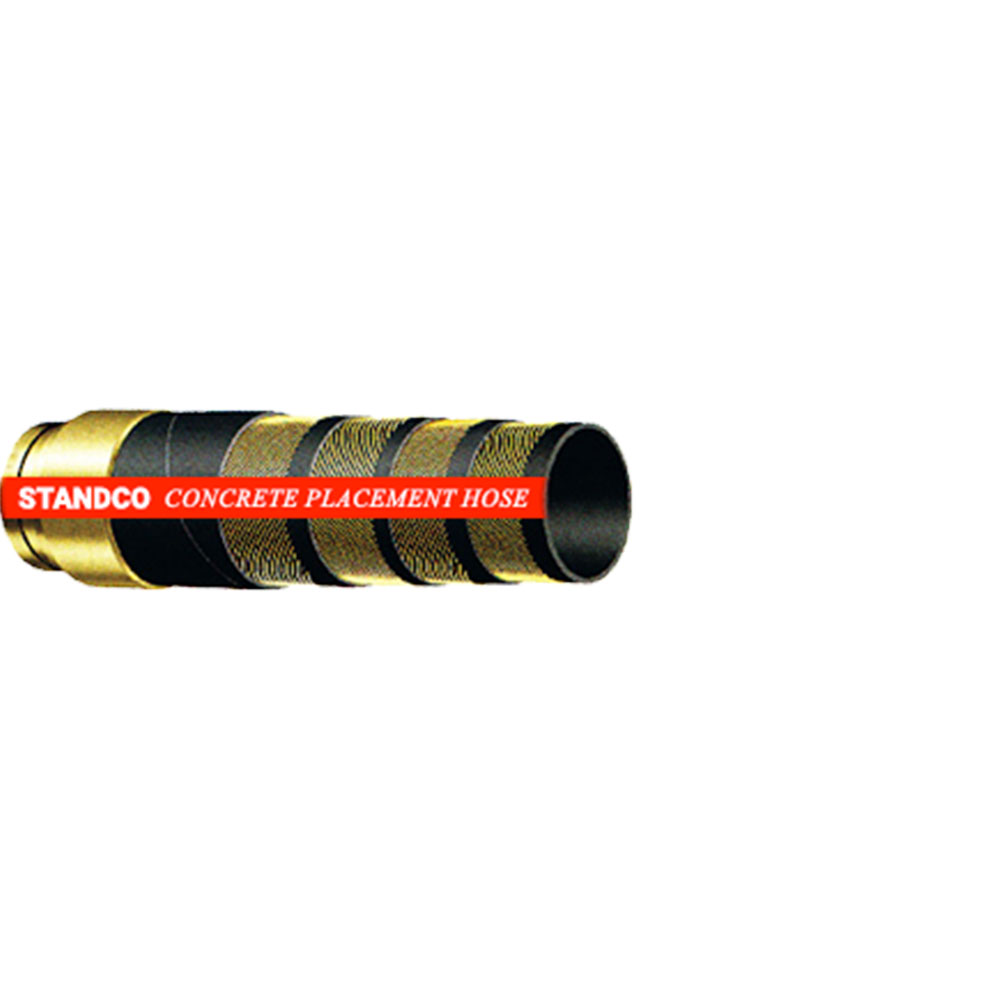

Concrete Placement Hose

Name: Concrete Placement Hose | Rubber Hose | Standco
Rating: 5.00 (1 reviews)

Common Applications:

Steel cord hose used for concrete placement at casting locations; it is used at the end of the pumps to distribute the concrete. The hose resists suction during the cleaning process. Usually supplied with swaged on “Full flow” hardened couplings.

Tube:

Black, smooth, NR / SBR rubber, that withstands the abrasive action of the concrete.

Reinforcement:

Piles of steel wire cord.

Cover:

Black, smooth, (wrapped finish), NR /SBR rubber, abrasion and weather resistant.

Branding:

Continuous red spiral stripe “IVG Abr”

Temperature Range:

-40°C to +70°C.

Safety Factor:

2.5:1

Description

Product Code	Nominal Inch	I.D.	O.D.	W.P		C.L	List Price (RM/mt)
Product Code	Nominal Inch	mm	mm	BAR	PSI	mt	List Price (RM/mt)
RHD 3050	2	50.8	75.0	85	200	30/60
RHD 3075	3	76.2	100.0	85	200	30/60
RHD 3100	4	101.6	128.0	85	200	30/60
RHD 3125	5	127.0	150.0	85	200	30
RHD 3150	6	152.4	184.0	85	175	30
