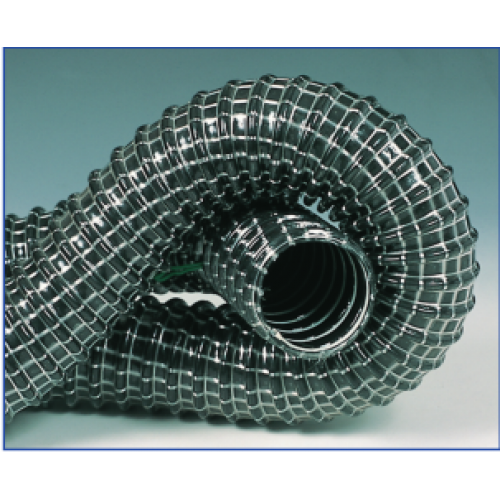

Flexible PVC Vacuum Ducting Hose

Name: Flexible PVC Vacuum Ducting Hose
Rating: 5.00 (1 reviews)

Applications:
Suitable for air handling, as well as dust and fume extraction. Particularly well-suited for domestic and industrial vacuum cleaners

Properties:
This ducting is flexible and features a smooth bore. It is robust, easy to handle, and offers good resistance to abrasion

Temperature Resistance:
– 5°C to +80°C in a 20°C ambient

Construction:
Plasticised PVC with encapsulated axial and helical re-inforcing yarns supported by a PVC covered spring steel helix

Options:
– Screw type cuffed ends
– Colours

Colour:
Black with white yarns

Single Length:
– 15 m lengths up to and including 63mm diameter
– 10 m lengths 70mm diameter and above

Description
Reviews (1)

Description

Technical Data

Dia. (mm)	Weight (kg/m)	Bend. Rad. (mm)	Working Pressure (bar)	Working Vacuum (bar)
25	0.22	25	1.05	0.91
32	0.27	32	1.00	0.91
35	0.34	35	1.00	0.85
38	0.37	38	0.95	0.80
41	0.40	41	0.95	0.75
44	0.43	44	0.90	0.70
51	0.49	51	0.90	0.59
64	0.61	64	0.80	0.43
70	0.77	70	0.75	0.40
76	0.85	76	0.95	0.50
80	0.90	80	0.95	0.45
