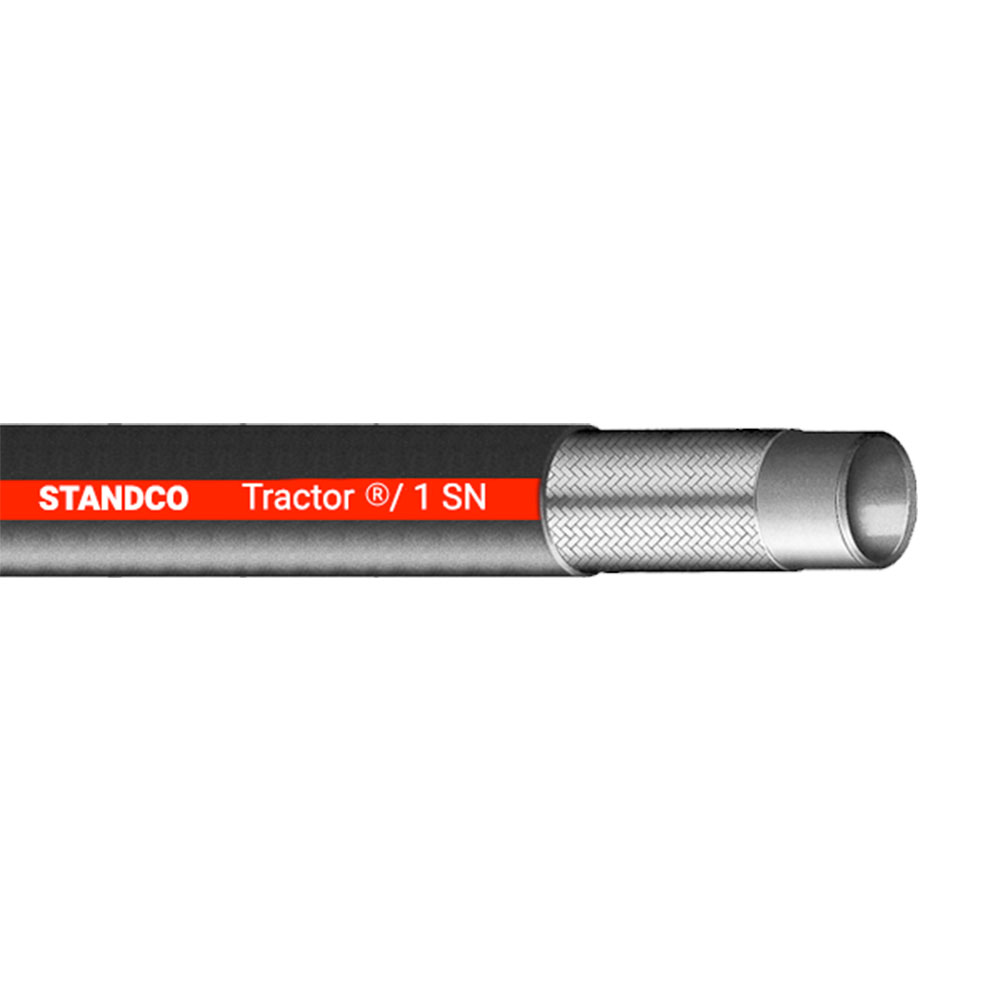

Standco Hose 1 SN

RM6.40RM44.00

Main Applications:

Medium-high pressure lines
Recommended Fluids:
Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water
Applicable Specs:
EN 853 2SN – SAE 100 R2AT – ISO 1436 2SN/R2AT
Type Approvals:
ABS, BV (DN 5÷51), DNV, GL, GOST-R, KSR, LR, MSHA
Key Performance:
EN/DIN rated working pressure – Smooth cover FRAS approved (DN 5÷12)
Continuous Service Temperature Range:
-40°f / +212°f   -40°c / +100°c
Max. Operating Temperature:
(Intermittent service) 250°f / 121°c
Tube:
Oil resistant synthetic rubber
Reinforcement:
Two high tensile steel braid
Cover:
Environment resistant synthetic rubber

Description

Type Part Ref. Inch ID OD W.P Price (RM)
mm mm BAR PSI
SMOOTH COVER R1 T1SN-04 1/4″ 6.2-7.0 12.7-13.5 225 3263 6.40
T1SN-06 3/8″ 9.3-10.1 16.7-17.5 180 2610 7.60
T1SN-08 1/2″ 12.3-13.5 19.8-20.6 160 2320 9.00
T1SN-10 5/8″ 16-17.5 22.5-23 130 1890 12.60
T1SN-12 3/4″ 18.6-19.8 26.9-27.7 105 1523 11.30
T1SN-16 1″ 25.0-26.4 34.6-35.4 88 1276 17.40
WRAP COVER R1 T1SN-20 1.1/4″ 31.4-33 43.3-44.1 63 914 31.30
T1SN-24 1.1/2″ 37.37-39.4 49.7-50.5 50 725 34.60
T1SN-32 2″ 50.4-52.0 62.4-63.2 40 580 44.00



Additional information

Type

SMOOTH COVER R1, WRAP COVER R1

Model

T1SN-04, T1SN-06, T1SN-08, T1SN-10, T1SN-12, T1SN-16, T1SN-20, T1SN-24, T1SN-32
